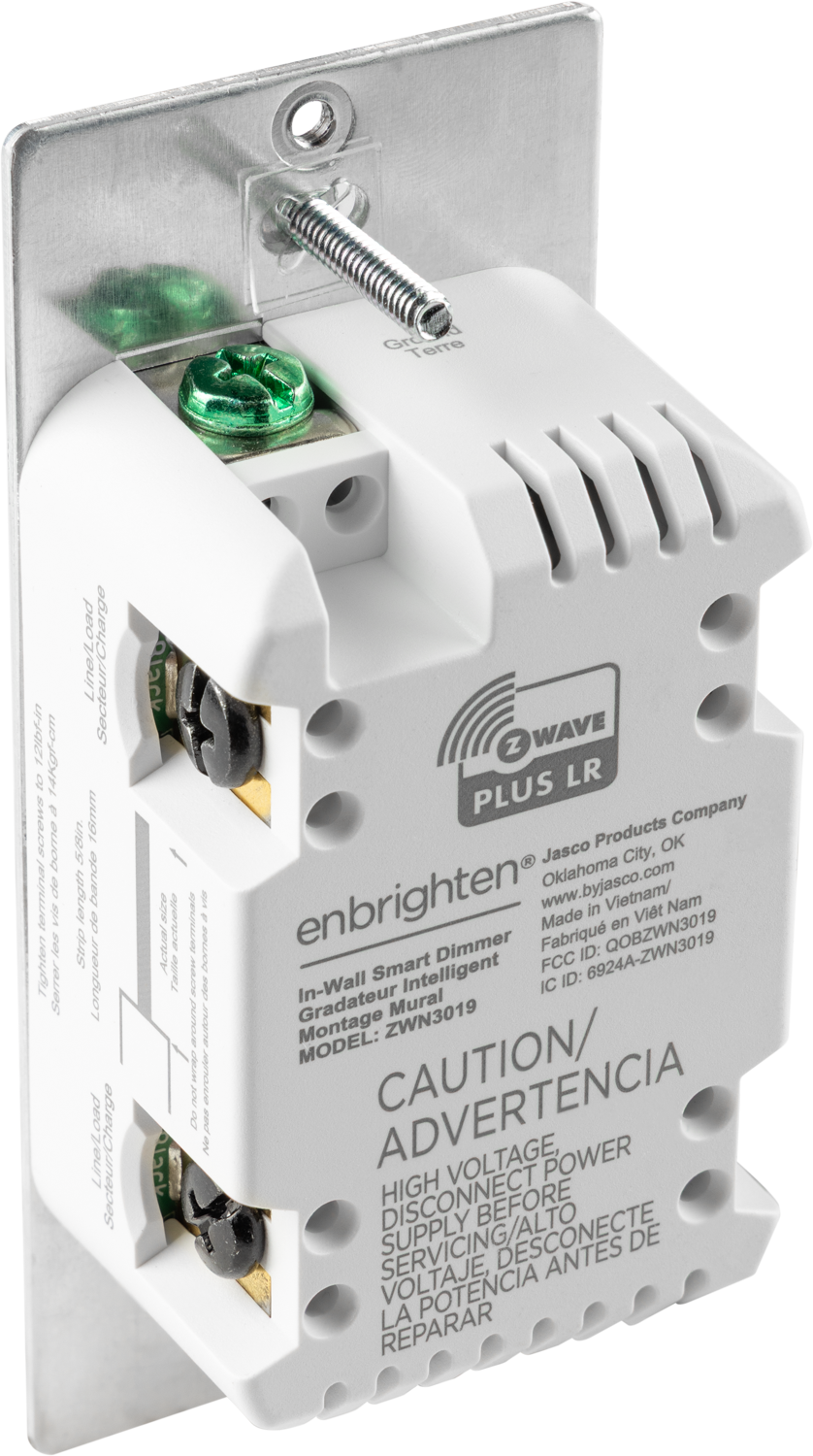

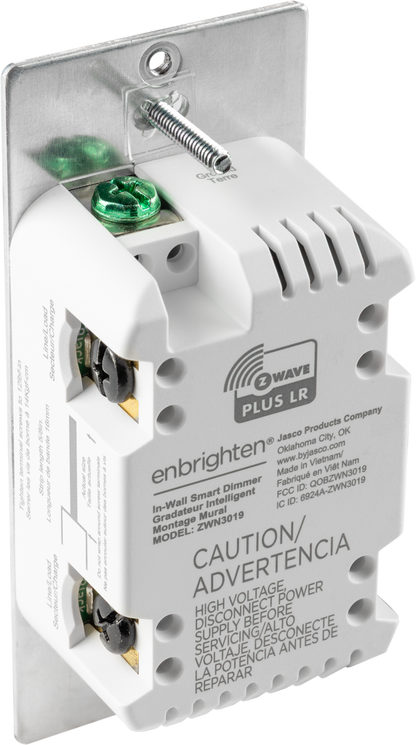

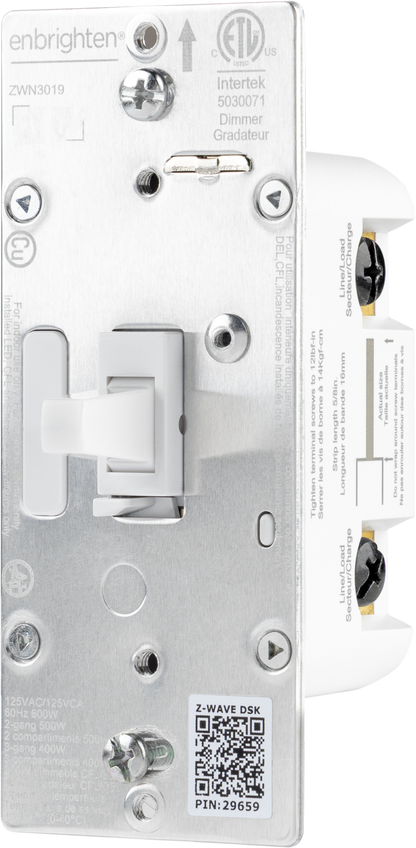

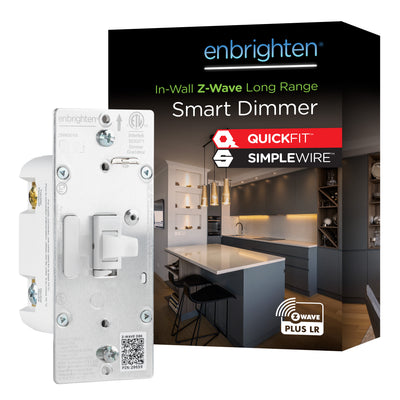

ENBRIGHTEN Z-WAVE IN-WALL SMART DIMMER

LONG-RANGE SMART DIMMING FOR LIGHTS THROUGHOUT YOUR HOME

Create the perfect lighting atmosphere with the Enbrighten Z-Wave In-Wall Smart Dimmer. When paired with a compatible Z-Wave hub, this hardwired smart dimmer provides convenient control of wall lights, ceiling fixtures and accent lighting through schedules, automations, remote access and custom brightness settings.

Featuring Z-Wave Plus Long Range technology, the dimmer communicates with compatible hubs from up to 1,300ft., making it ideal for large homes, hospitality settings and multi-dwelling properties. It also supports Z-Wave Classic inclusion, providing backward compatibility with previous Z-Wave generations and extending mesh network coverage by up to 150ft.

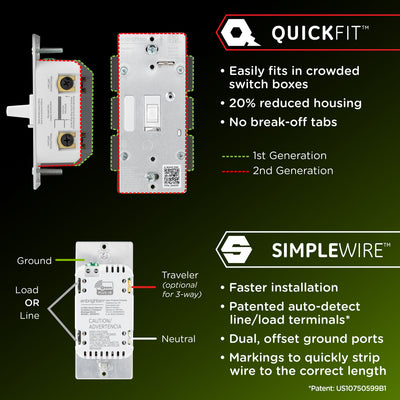

QuickFit and SimpleWire technologies simplify installation with patented auto-detecting line/load terminals that reduce wiring guesswork. The compact housing fits crowded electrical boxes, while dual ground ports support daisy chaining. For multi-location control, the dimmer works with up to four Enbrighten add-on switches for full dimming functionality from every location or one traditional three-way switch for ON/OFF control.

Enhanced Z-Wave security protects connected devices and user data for reliable smart home performance.

FAQ

DOES THIS SMART DIMMER REQUIRE A Z-WAVE HUB?

Yes. A compatible Z-Wave hub is required for smart control, automation, scheduling and remote access.

Product Details

Features
  • WORKS WITH POPULAR Z-WAVE HUBS — Compatible with certified Z-Wave hubs from SmartThings, Ring Alarm, ADT, Honeywell, HomeSeer, Ezlo and more; supports voice control through Amazon Alexa and Google Assistant

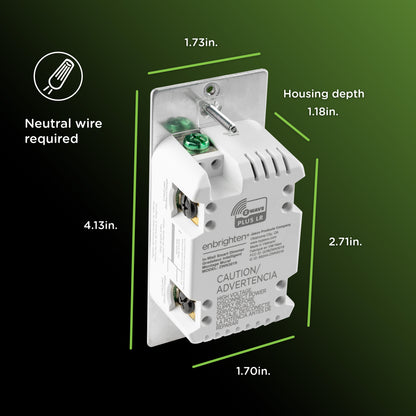

  • FAST DIY INSTALLATION — QuickFit design reduces housing depth by 20% for crowded electrical boxes, while patented SimpleWire auto-detecting line/load terminals simplify installation and reduce wiring guesswork
  • MULTI-LOCATION SMART DIMMING — Supports single-pole installations or up to four Enbrighten add-on switches for full-range 0-100% dimming and smart control from multiple locations; also supports one standard three-way switch
  • EXTENDED Z-WAVE LONG RANGE PERFORMANCE — Connect up to 1,300ft. from compatible Z-Wave LR hubs or up to 150ft. in Z-Wave Classic mode while strengthening and expanding your mesh network

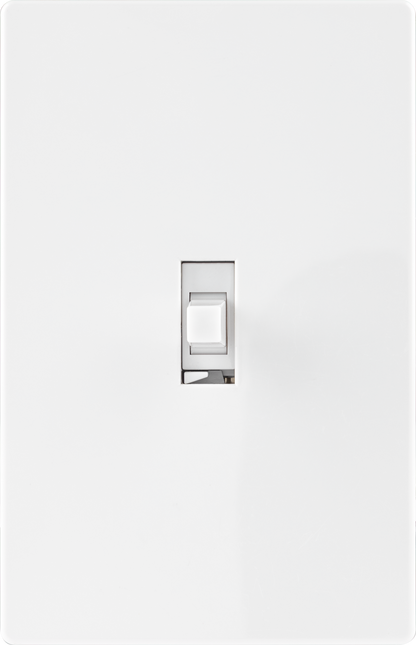

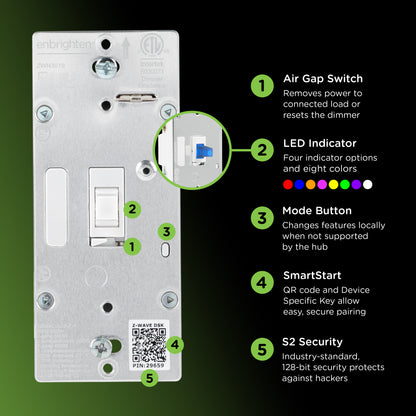

  • CUSTOMIZABLE LED GUIDE LIGHT — White toggle-style smart dimmer features eight LED indicator color options and four operating modes for personalized visibility, location finding and status indication
Instruction Manuals
Attachments

GenericFileDrop

Free shipping over $100!

  • 5 stars: 0 (0%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 2 (100%)
j
jcapped
No documentation

Nice switch -- but there is NO documentation regarding settable parameters which is VERY IMPORTANT in zwave configurations. I was able to find only several parameters as posted below from Chat GPT but nowhere can such parameters be found. This is really poor. In spite if it being a nice switch -- if you can't control it, what good is it?
3 LED Light Mode 0
4 Invert Switch 0
5 3-Way Type 0
16 Switch Mode 0 (Dim mode)
19 Alternate Exclusion 0
30 Minimum Dim Threshold 1
31 Maximum Brightness Threshold 99
32 Brightness Level 0
34 LED Light Color 5
35 LED Light Intensity 4
36 Guidelight Mode Intensity 4
84 Reset Factory Default 0

V
Vinay N
Unfortunately even after numerous attempts

Unfortunately even after numerous attempts, I am unable to connect the switch to the wifi/enbrigthen app.

Vinay, thanks for the feedback. We are so sorry that this happened. This is certainly something that we did not expect to occur. We would love to have the opportunity to work with you directly and help walk you through the troubleshooting steps for this product, so you can enjoy our products to their full potential. At your earliest convenience, please give us a call at 1-800-654-8483.
